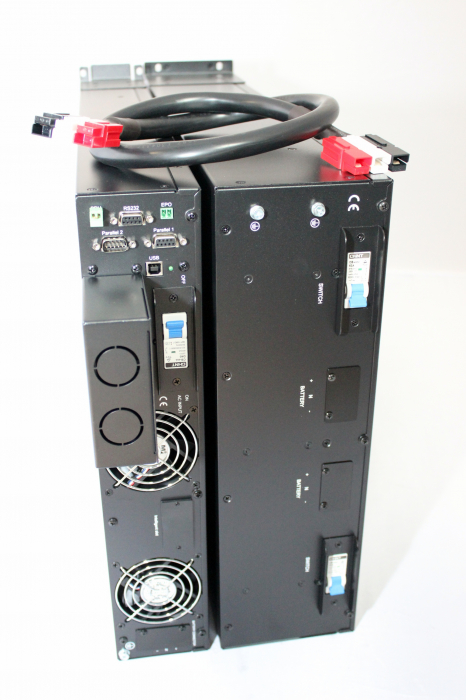

UPS SPS MID RT 6000VA/5400W Online Dubla Conversie MID6000RTI Tower + Cabinet acumulatori

UPS SPS MID RT 6000VA/5400W Online Dubla Conversie MID6000RTI Tower + Cabinet acumulatori - cabinetul contine 20 x 12V/7Ah

Online – Dubla conversie
Timp de transfer 0 pe iesire
Tehnologie PFC
Display complet digital (DSP)
Factor de putere iesire: 0.9
Input curent armonici: 5%
Mod economic de operare ECO
Circuitele de Incarcare/Redresare/Invertoare controlate in intregime prin tehnologie digitala
Plaja de tensiuni alimentare larga 120VAC-276VAC
Plaja frecvente alimentare larga: 45-55Hz
Test automat la pornire
Protectie la inalta/joasa tensiune de intrare
Automtic bypass
Pornire la rece
Izolarea defectiunii in caz de functionare incorecta
Interfata de comunicare: RS232 , dry contact, RS485*2
Optional: card SNMP, Paralel port modul

Specificatii Tehnice:

Putere UPS: 6000VA/5400W
Tensiune operare: 120-276 V
Frecventa operare: 45-55Hz
Tensiune iesire: 220/230/240 Vca
Factor putere: 0.9
Tip unda iesire: Pur sinusoidala
Timp de transfer: 0 ms
Eficienta: >93%
Acumulatori inclusi in cabinet: 20 x 12V/7Ah
Timp reincarcare acumulatori: 8 ore
Interfete comunicare: USB, RS232, SNMP(optional), paralel(optional), releu(optional)
Dimensiune UPS: 443x131(3U)x580mm
Dimensiune cabinet: 443×131(3U)×720mm
Greutate UPS: 23kg
Greutate Cabinet: 67 kg
Temperatura operare: 0-40 C
Umiditate operare: 20-90 %
